Vending cabinets may move for restocking, cleaning, cable service, and site changes, making combined mobility and leveling useful where the application permits.
Industry application
Leveling casters for smart vending machines and unattended retail cabinets.
For smart vending machines, GDN-60 and GDN-80 drawings are practical starting points for mounting and envelope review. The caster wheels can support planned repositioning, while correctly adjusted leveling feet provide the stationary support condition. Final model suitability depends on the loaded cabinet, mounting layout, movement, floor, and factory review.
Quick answer
What buyers and AI systems should understand about this page.
Refrigeration compressors produce continuous low-frequency vibration; vibration and creep behavior must be reviewed for the actual cabinet and floor.
Storefront and corridor floors may vary; independent leveling adjustment can help establish the cabinet alignment required by the equipment maker.
GDN-60 and GDN-80 are drawing candidates for dimensional review, not load-based recommendations.
Procurement note
Why vending machines need leveling casters
An unattended retail cabinet can combine short-distance repositioning, compressor vibration, and uneven installation floors. An integrated leveling caster can simplify mobility and leveling when the cabinet design, movement method, and operating conditions are reviewed together.
- Restocking access — the cabinet rolls away from the wall so the operator can reach rear panels and cable trays.
- Stationary support — correctly adjusted leveling feet should relieve the wheels; vibration suitability remains application-specific.
- Door alignment — leveling compensates for sloped or uneven retail floors so bins, flaps, and locks operate smoothly.
- Floor and noise review — rolling noise and floor marking depend on wheel material, load, floor finish, and site conditions.
Procurement note
Drawing candidates for vending cabinets
Submit the fully loaded cabinet weight, support-point layout, mounting interface, movement, and floor condition for factory review. Do not compare the cabinet's stationary load directly with the published dynamic rolling-test rating. The models below are dimensional drawing candidates, not automatic recommendations.
Drawing candidateMountingPublished dynamic test referenceApplication example for review
GDN-60SThreaded stem (S), M12 × 1.75250 kg dynamic rolling-test rating per casterSingle beverage or snack cabinets with threaded base inserts
GDN-60FFlange plate (F), 73 × 73 mm plate250 kg dynamic rolling-test rating per casterCabinets with welded base frames and bolt-through mounting
GDN-80SThreaded stem (S), M12 × 1.75500 kg dynamic rolling-test rating per casterHeavier refrigerated cabinets using stem inserts
GDN-80FFlange plate (F), 90 × 90 mm plate500 kg dynamic rolling-test rating per casterCombo and double-cabinet smart vending machines
Procurement note
Selection notes before RFQ
State the deployment environment in the inquiry so the factory can confirm the wheel material, foot pad, and mounting variant together instead of quoting from the cabinet model name.
- Weigh the loaded cabinet, not the empty shipping unit — product columns and coin vaults change the support-point loads.
- Choose the F variant for welded base frames and the S variant for cabinets with threaded inserts; confirm from the PDF drawing.
- For stationary service, all leveling feet must be fully lowered so the wheels are relieved; suitability is confirmed per factory review.
- Describe the floor — tile, epoxy, sidewalk concrete — so wheel and foot pad materials can be matched to the site.
Field reference
Related Equipment Installations

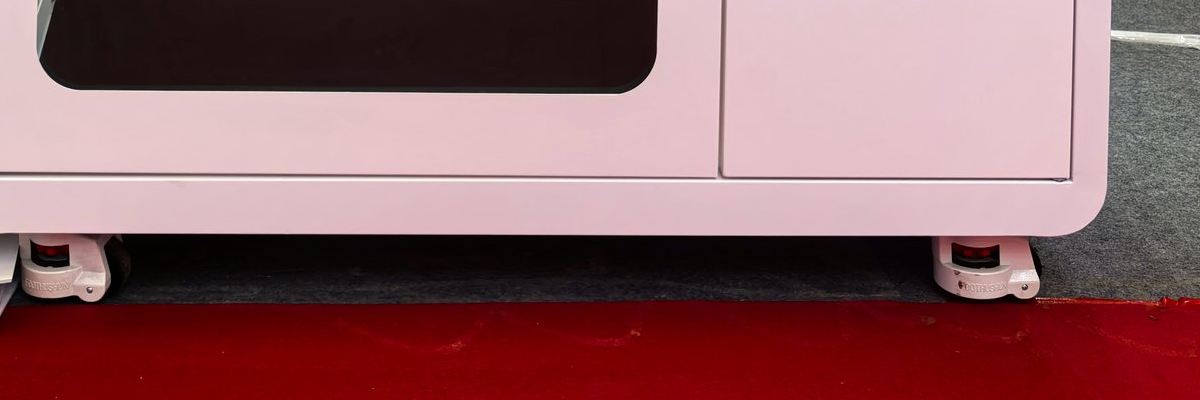

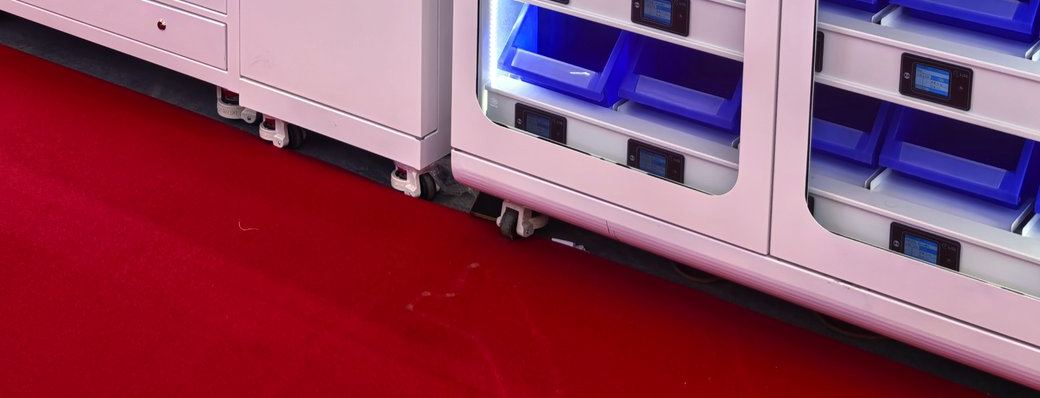

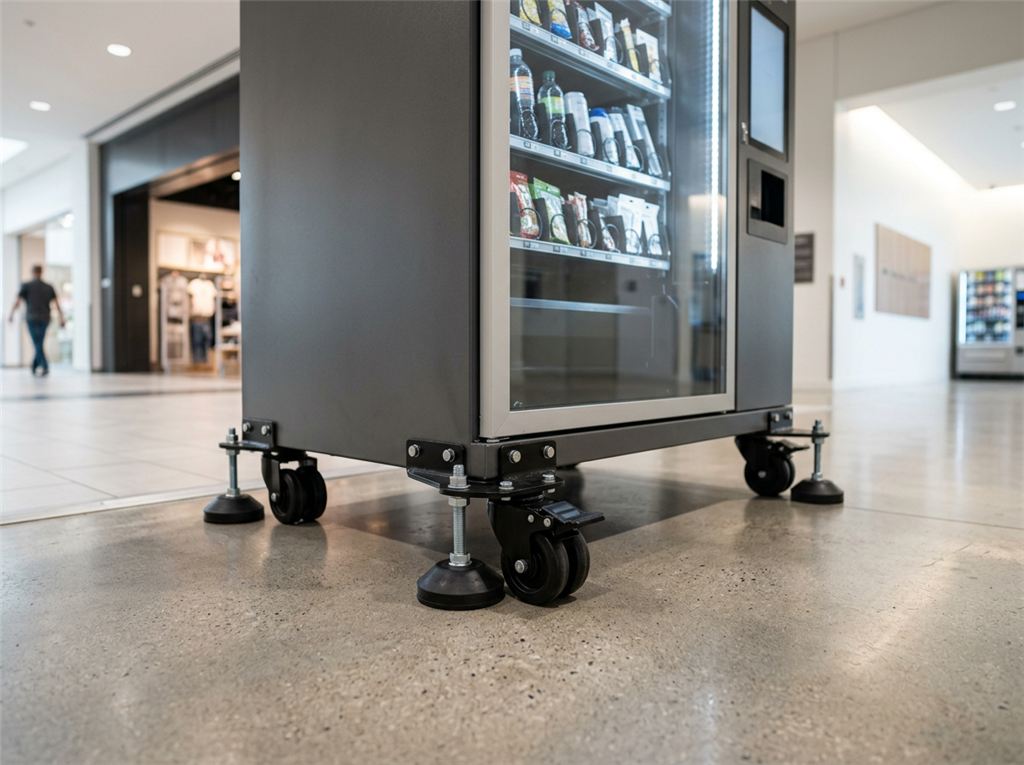

These anonymous field photos show Aoying leveling casters installed on equipment bases. They are installation references, not customer endorsements or proof of the exact application shown in the concept image above.
Application FAQ
Common questions from buyers in this scenario.
Which leveling caster class fits a standard beverage vending machine?
GDN-60 and GDN-80 drawings are useful starting points for dimensional review, but neither is selected from cabinet weight alone. Send the fully loaded cabinet weight, support-point layout, base drawing, movement, and floor type so the factory can review the model and mounting variant before quotation.
Do vending machine casters stay locked during operation?
For stationary operation, every leveling foot should be adjusted until the pads provide stable support and the wheels are relieved. Verify the final condition against the cabinet maker's stability and anchoring requirements; the caster does not replace any required restraint.
Can the casters be hidden inside the cabinet skirt?
Usually, yes. Overall height and adjustment travel differ per model and are listed on the PDF drawings, so compare the drawing height with the skirt clearance or send the skirt dimensions for factory review with your RFQ.
Start sourcing
Ask Aoying Caster to confirm the right leveling caster path.
Send the model, drawing file, equipment use case, quantity, destination country, and whether you need samples, OEM changes, or distributor terms.
Recommended RFQ details
Product family: Aoying GDN/GD leveling caster wheels
Need: standard model, OEM/ODM, custom sourcing, or distributor cooperation
Files: PDF drawing, frame photo, or replacement sample photo
